MaxGrate Pultruded FRP grating is manufactured by assembling two structural fiberglass shapes (cross and bearing bars) into a grid pattern. These bar shapes are pulled continuously through pultrusion machine .this process permits production of continuous bar length up to 20 feet.
Features

MaxGrate Pultruded FRP grating mainly have three types:

I-type pultruded grating

T-type pultruded grating

Heavy load pultruded grating

  • High glass content to guarantee the strenth
  • Longer spans
  • Good impact resistance
  • Light Weight
  • Good load ability
  • Corrosion resistant
  • Flame retardant
  • Non-Slip grit surface
  • Good fatigue resistance
  • Non conductive
  • Beautiful and maintenance free
Promise

Description

Specification

How to Order

Reviews

MaxGrate Pultruded fiberglass grating is manufactured by assembling two structural fiberglass shapes (cross and bearing bars) into a grid pattern. These bar shapes are pulled continuously through pultrusion machine- fiberglass reinforcement with liquid polyester or vinyl ester resin through a heated mold with temperature control at different sections of the die to facilitate resin to cure.
Compared to molded grating,pultruded gratings are with below advantages:
High Strength: Pultruded Grating products offer superior strength and stiffness. Since fiberglass is the key contributor to structural performance, the content of fiberglass in pultruded grating are as high as 55%. which can guarantee the highest strength to unit weight ratio. Therefore, Pultruded FRP gratings have high loading capacity than molded FRP gratings.

Fabrication Features: Many panel sizes allow for greater use versatility with longer spans which may reduce scrap loss.Not like molded grating,Pultruded grating offer possibility of any width or length for different applications.
Typical of Pultruded Grating
The bearing bar of Pultruded fiberglass grating mainly have three types: I-shape bars, T-shape bars and high-load bars.
I-type
T-type
High-load type

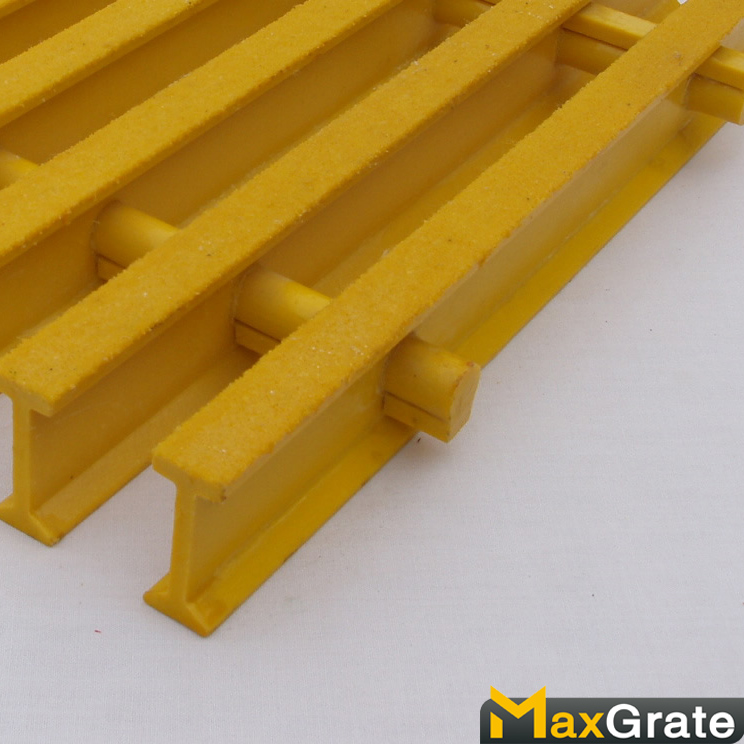

Pultruded FRP gratings with I-shape bars are the most common used type. The standard open rate is 60%,50%,40%.
This kind of pultruded FRP gratings have T-shape bars and offer small open areas. The gritted top ensure the safetly.
Pultruded FRP gratings with high load bars are mainly used for heavy duty applications.
Surface of Pulturded Grating
MaxGrate Pultruded fiberglass grating offer norminal three kinds of surface top for option,slica gritted on the top to alip resistance is the most popular surface type,solid gritted covered plate on the top for futher enhance the strength and saftey are available as well.
Gritted surface
Corrugrated surface
Smooth surface
Coverd Gritted
Due to the high performance of resin systems used in Pultruded frp Grating, the degree of corrosion resistance for pultruded grating is superior to stainless steel, aluminum and galvanized gratings.
Resin System of Pultruded Grating
Resin Type Resin Base Description Corrosion Resistence Flame Spread Rating Usage Temp℃
O Orthophthalic Polyester Morderate Grade Corrosion
 Resistance Fire Retardant
Good Astm E-84 Class 1 25 Or Less -50 - 60
I Isophthalic
 Polyester
Industrial Corrosion Resistance
Fire Retardant
Very Good Astm E-84 Class 1 25 Or Less -50 - 90
IF Isophthalic Polyester Food Grade Corrosion Resistance
Fire Retardant
Very Good Astm E-84 Class 1 25 Or Less -50 - 90
V Vinyl Ester Superior Corrosion Resistance
Fire Retardant
Excellent Astm E-84 Class 1 25 Or Less -50 - 110
VH Vinyl Ester Superior Corrosion Resistance
High Fire Retardant
Excellent Astm E-84 Class 1 10- Or Less -50 - 110
Rich Color for Option
MaxGrate offers wide color selections for pultruded fiberglass grating. The followings are some of the most popular colors that we may have stock and keeping continuously production. We can closely match any color in the Ral Color Chart Page.
I-type
Item No. Bar Type Open Area % Thickness T
(in/mm)
Top bar width A
(in/mm)
Bar space B
(in/mm)
Appr.Weight
(lbs/sf / kg/m2)
I60100 I 60 1”/25 0.6”/15 1.5”/38 2.38/11.2
I50100 I 50 1”/25 0.6”/15 1.2”/30 2.90/14.2

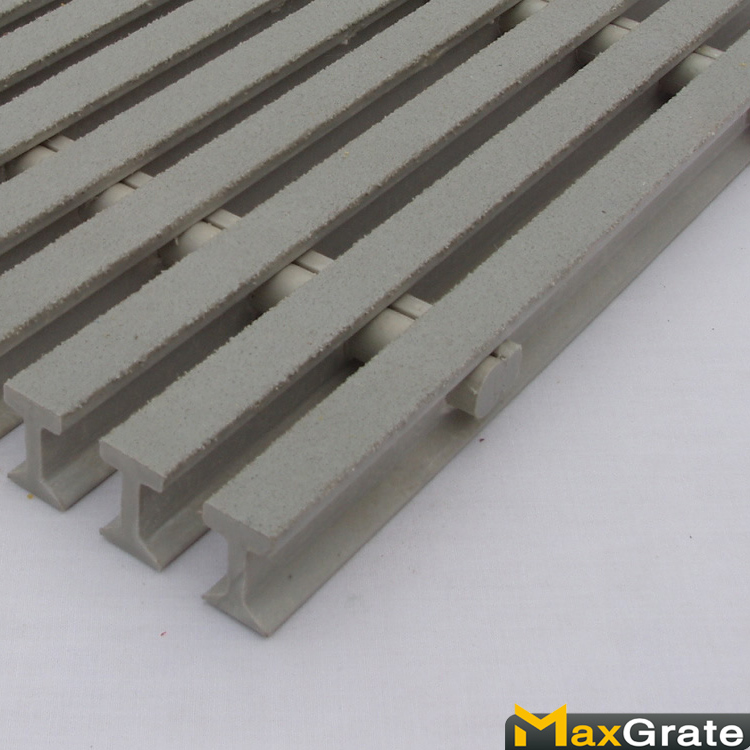

I40100 I 40 1”/25 0.6”/15 1.0”/25 3.42/17.0
I60120 I 60 1.2”/30 0.6”/15 1.5”/38 2.58/12.6
I50120 I 50 1.2”/30 0.6”/15 1.2”/30 3.20/15.7
I40120 I 40 1.2”/30 0.6”/15 1.0”/25 3.85/18.8
I60125 I 60 1.25”/32 0.6”/15 1.5”/38 2.95/14.4
I50125 I 50 1.25”/32 0.6”/15 1.2”/30 3.58/17.5
I40125 I 40 1.25”/32 0.6”/15 1.0”/25 4.64/20.6
I60200 I 60 2”/50 0.6”/15 1.5”/38 4.60/20.1
I50200 I 50 2”/50 0.6”/15 1.2”/30 4.95/24.2
I40200 I 40 2”/50 0.6”/15 1.0”/25 5.80/28.5
T-type
Item No. Bar Type Open Area % Thickness T
(in/mm)
Top bar width A
(in/mm)
Bar space B
(in/mm)
Appr.Weight
(lbs/sf / kg/m2)
T38100 T 38 1”/25 1.5”/38 2.4”/61 2.16”/10.2
T25100 T 25 1”/25 1.5”/38 2”/50.8 2.60”/12.3
T18100 T 18 1”/25 1.5”/38 1.8”/46.5 2.93”/13.8
T12100 T 12 1”/25 1.5”/38 1.7”/43.4 3.08”/14.5
T38150 T 38 1.5”/38 1.5”/38 2.4”/61 2.90”/14.2
T25150 T 25 1.5”/38 1.5”/38 2”/50.8 3.41”/16.7
T12150 T 12 1.5”/38 1.5”/38 1.7”/43.4 4.00”/19.6

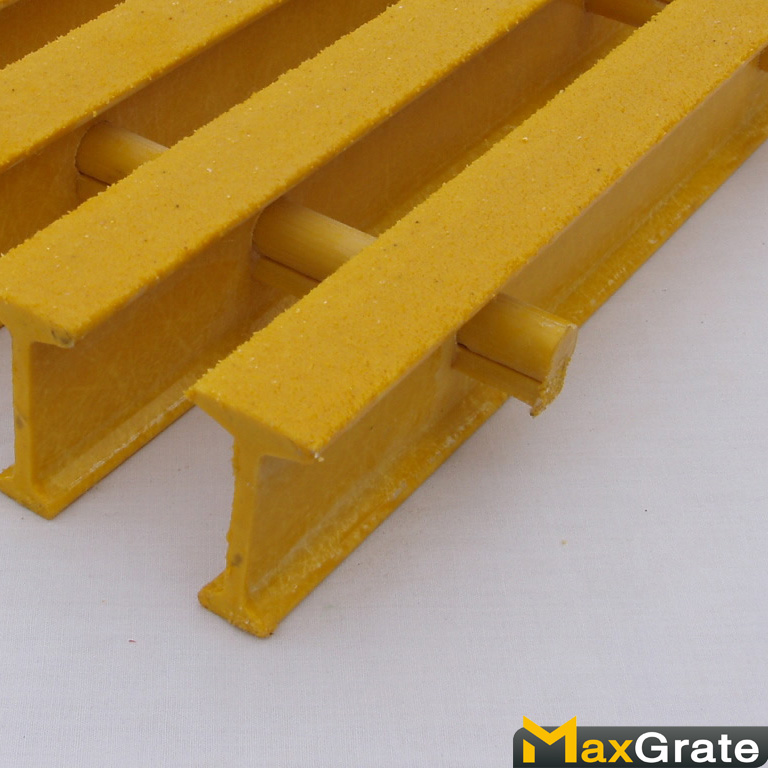

T50200 T 50 2”/50 1”/25.4 2”/50.8 3.2”/15.7

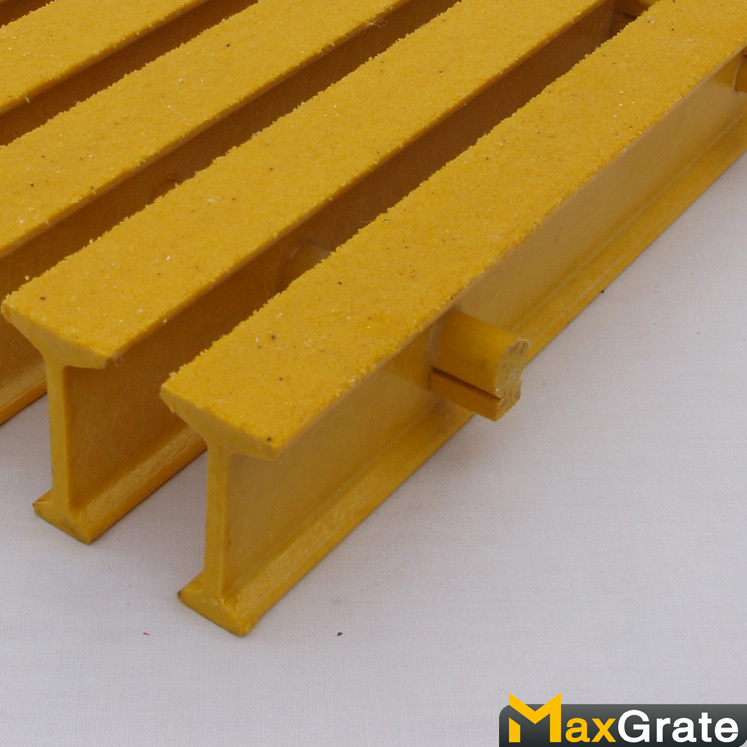

T33200 T 33 2”/50 1”/25.4 1.5”/38.1 4.14”/20.3
Heavy Load Grating
Item No. Bar Type Open Area % Thickness T
(in/mm)
Top bar width A
(in/mm)
Bar space C
(in/mm)
Appr.Weight
(lbs/sf / kg/m2)
HL60200   Heavy load 60 2”/50 0.6”/15 0.9”/23 8.88”/43.5
HL50200 50 2”/50 0.6”/15 0.6”/15 10.66”/52.2
HL40200 40 2”/50 0.6”/15 0.4”/10 14.37”/70.4
Panel Size (Width x Length)
Standard Panel Size
Imperial units WxL (in) Metric units WxL (m)
3’x8’ 4’x8’ 5’x8’ 1x3 2x3
3’x10’ 4’x10’ 5’x10’ 1x4 2x4
3’x12’ 4’x12’ 5’x12’ 1x5 2x5
3’x20’ 4’x20’ 5’x20’ 1x6 2x6
Catalogue Number
For example
PI60100W1L1OGYE: Pultruded FRP grating, I-type bar, 60% open rate, Thickness 1"(25mm), Width 3', Length 8', Ortho resin, Gritted surface, Color Yellow Ral 1003.
Others*: Other open rate and color may be available, please contact one of our sales managers before ordering.
Your width and Your length: On theoretically there is no limited width or length for pultruded grating. If other width or langth are requested, please write down your width or length directly. Our sales manager would feedback you if your special requests are not workable may be due to too long to ship by container. Or, contact one of our sales managers before ordering.
