FRP Hand Lay-up

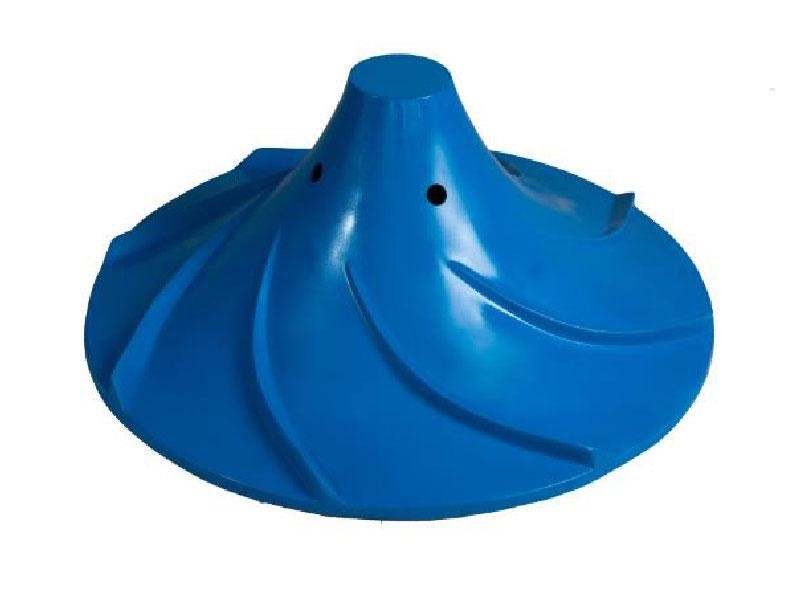

FRP Hyperboloid Impeller for mixing
FRP Hyperboloid Impeller for mixing
FRP Hyperboloid Impeller for mixing
FRP Hyperboloid Impeller for mixing
FRP Hyperboloid Impeller for mixing

FRP Hyperboloid Impeller for mixing

Customized fiberglass parts, OEM available
FRP Hyperboloid Impeller as the mixer part of water treatment equipment is widely applied in the sewage treatment process of coagulative precipitation tank, equalization pond, anaerobic pond, nitration pond, and denitrifying pond.
Features
  1. In comparison with traditional blade-paddle mixer, FRP Hyperboloid Impeller has the feature of mixing equality, high efficiency, low energy consumption and no dead zones.
  2. Simple structure and easy for installation and maintenance.
  3. Its Corrosion- Resistance ,Used especially for the water treatment such as mixing of waste water and chemical agents.
  4. Big surface area impeller, equipped with small power, saving energy.
Promise

Specification

Reviews

Description

FRP Hyperboloid Impeller as the mixer part of water treatment equipment ,are widely applied in environmental protection, chemistry, energy and light industry where the solid, liquid and gas are interflowing, especially in the sewage treatment process of coagulative precipitation tank, equalization pond, anaerobic pond, nitration pond, and denitrifying pond.

If the mixer is dry type installation, it's especial suit for the environment with high temperature, high concentration and corrosive liquid.
Application

MaxGrate FRP Hyperboloid Impeller used as the mixer part of water treatment equipment.

 Fiuid figure
Installation
Specifications

MaxGrate FRP Hyperboloid Impeller specification

Impeller Diameter
(mm)
Speed (r/min) Power (kw) Service area(m)
range range
500 40-250 0.75-1.5 1-3
1000 30-80 1.1-2.2 2-5
1500 30-60 1.5-3 3-6
2000 20-42 2.2-3 6-14
2500 20-40 3-5.5 10-18
2800 20-30 4-7.5 12-22
3000 20-30 5.5-7.5 14-25
