FRP Handrail System
Fiberglass FRP/GRP handrails
Fiberglass FRP/GRP handrails
Fiberglass FRP/GRP handrails
Fiberglass FRP/GRP handrails
Fiberglass FRP/GRP handrails

Fiberglass FRP/GRP handrails

MaxGrate FRP handrail system are designed for use as stair rails, platform, walkway handrails and guardrails. The fiberglass handrails are widely used in corrosive environments like industrial, chemical, wastewater treatment plants, and commercial structures.
Features
  • Corrosion Resistance
  • Durable Pultruded Components
  • Ease of Assembly
  • Internal and External Connection System
  • Electrical Insulation
  • High Strength to Weight Ratio
  • Low Maintenance and Durable
  • UV Inhibitors and Anti-aging
  • Cost Effective
  • Safety Yellow Color

MaxGrate have the capability to design, manufacture, and fabricate a custom handrail system solution to meet your special need.

Promise

Description

Specification

Reviews

Fiberglass Handrail fittings
MaxGrate FRP handrail system transverse and vertical posts are usually fiberglass profiles rail like square tube(usually50x50mm), round tube(usually dia 50mm), connected with various kinds of handrail connectors and fittings like three way tee connector, four way cross connector,3 way Angle Connector,4 way Angle Connector,90 Degree Elbow Connector, End Bend Connector, Wall Connector, base and other accessories.
A tubular mid (knee) rail and kick plate is available for safety reasons.

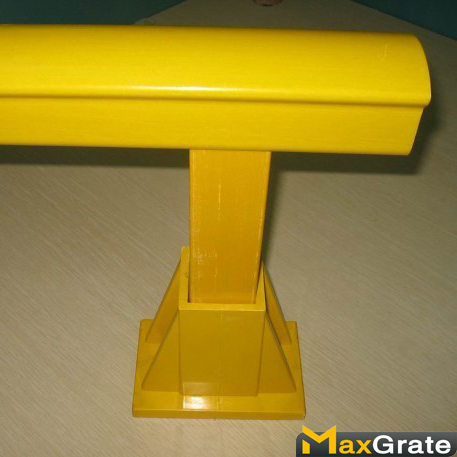

The handrails are generally secured at the base using fibreglass box sockets(base foot) or bolted to fibreglass grating floor or other structures.
FRP handrail systems
MaxGrate FRP handrail systems are the best choice to use as safety railing and safety barrier in the industries of below:

Offshore & Marine
Textile
Petro-chemical & Refining
Electrical & Power
Communications Generation
Water/Wastewater
Computer & High-Tech
Transportation & Transit
Recreational Water Parks
Aerospace & Pools
Automotive
Pulp & Paper
Military
Mining
Medical
Metal Plating
Shipping
Food & Beverage
Zoos & Aquariums
Farms
Mechanical Properties
Minimum Mechanical Properties for Pultruded Rail and Post are as follow:
Properties Test Merhod Square Rail Values Round Rail Values
Tensile Stress ASTM D638 30000 psi(207N/mm2) 30000psi(207N/mm2)
Tensile Modulus ASTM D638 2.5x106psi(17.2x103N/mm2) 2.5x106psi(17.2x103N/mm2)
Compressive Stress ASTM D695 30000 psi(207N/mm2) 30000psi(207N/mm2)
Compressive Modulus ASTM D695 2.5x106psi(17.2x103N/mm2) 2.5x106psi(17.2x103N/mm2)
Flexural Stress ASTM D790 30000 psi(207N/mm2) 30000psi(207N/mm2)
Flexural Modulu ASTM D790 1.6x106psi(11.0x103N/mm2) 1.6x106psi(11.0x103N/mm2)
Shear Stress ASTM D2344 4500psi(31N/mm2) 4500psi(31N/mm2)
Density ASTM D792 060-070lbs/in3
(1.72-1.84x10-3g/mm2)
060-070lbs/in3
(1.72-1.84x10-3g/mm2)
24Hr.Water absorption ASTM D570 0.6%max 0.6%max
Coef.thermal expansion ASTM D696 4.4x10-6in/in°F(min.)
(14.5x10-6mm/mm/Co)
4.4x10-6in/in°F(min.)
(14.5x10-6mm/mm/Co)
Flexural Stress Full Section 3600psi(typical)(248N/mm2) 60000psi(typical)
(414N/mm2)
Flexural Modulu Full Section 3.7x106psi(typical)
(25.5x103N/mm2)
4.5x106psi(typical )
(31.0x103N/mm2)
MaxGrate FRP handrail systems generally designed to height 1100mm ,Span 1000mm(Maximum 1500mm).
The handrails are generally secured at the base by two ways: 1) using fibreglass foot base 2)fix to fibreglass grating floor or other structures.

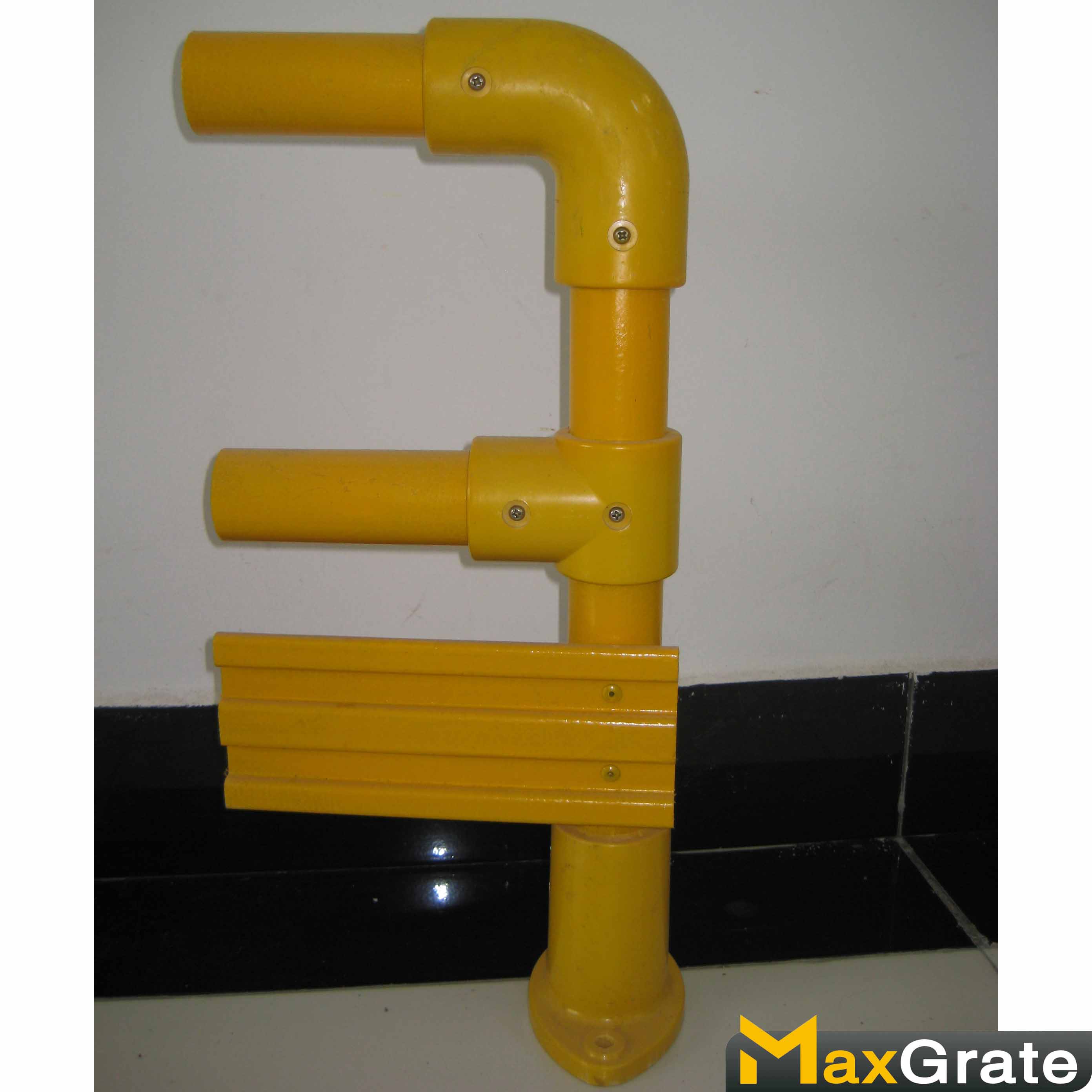

HRS01-Round Tube Handrail System Design

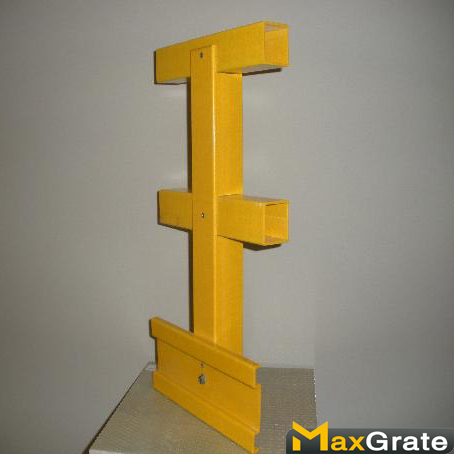

HRS02-Square Tube Handrail System Design
HRS03-Square and Round Tube Handrail System Design
Custom design or Special requirements are available for MaxGrate to design, manufacture, structure professional handrail system for you.
If you are interesting in one of our handrail system designs, Please indicate the Item No. (HRS01, HRS02 or HRS03), total length and any other requests.
Your design and special requirements are also welcomed. Please contact one of our sales manager before ordering.
