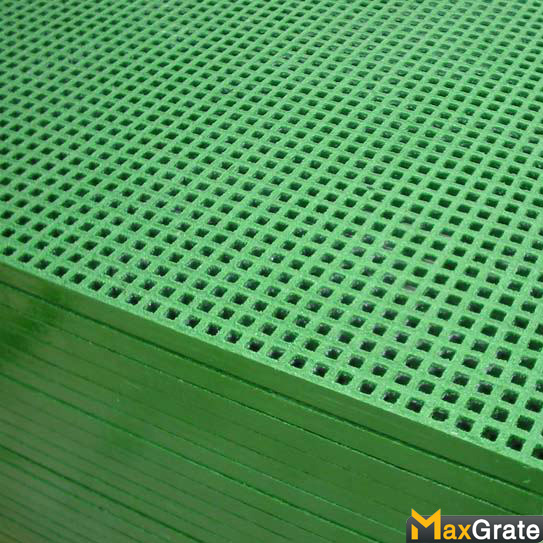

Mini micro mesh FRP molded grating
Mini micro mesh FRP molded grating
Mini micro mesh FRP molded grating
Mini micro mesh FRP molded grating
Mini micro mesh FRP molded grating

Mini micro mesh FRP molded grating

MaxGrate mini or micro mesh grating is specially designed for those applications where solid flooring is not permitted due to airflow requirements, but the openings must be small enough to prevent tools and objects falling through.
Features

Micro mesh grating not only has all characteristics of square mesh FRP grating,but also with below Special Features:

  • Small opening to prevent objects falling through.
  • Provide for unobstructed airflow.
  • Easier flooring for pushing carts, drum dollies,shoe heels.
  • Comply with ADA requirements for wheelchair floorings.
Promise

Description

Specification

How to Order

Reviews(1)

MaxGrate mini mesh or micro mesh fiberglass molded grating is specially designed as per ADA requirement with compliant mesh size small enough to prevent small tools and other objects from falling down through the grating.
Mini mesh FRP grating has two typical mesh patterns:
Mini mesh:
Prevent objects as small as 13mm from falling through
M1-19x19/38x38mm(3/4"x3/4"/1.5"x1.5")
M2-20x20/40x40mm
Micro mesh:
Prevent objects as small as 8mm from falling through
M3-12.7x12.7/38x38mm(1/2"x1/2"/1.5"x1.5")
M4-13x13/40x40mm
Overview of the mini meshes

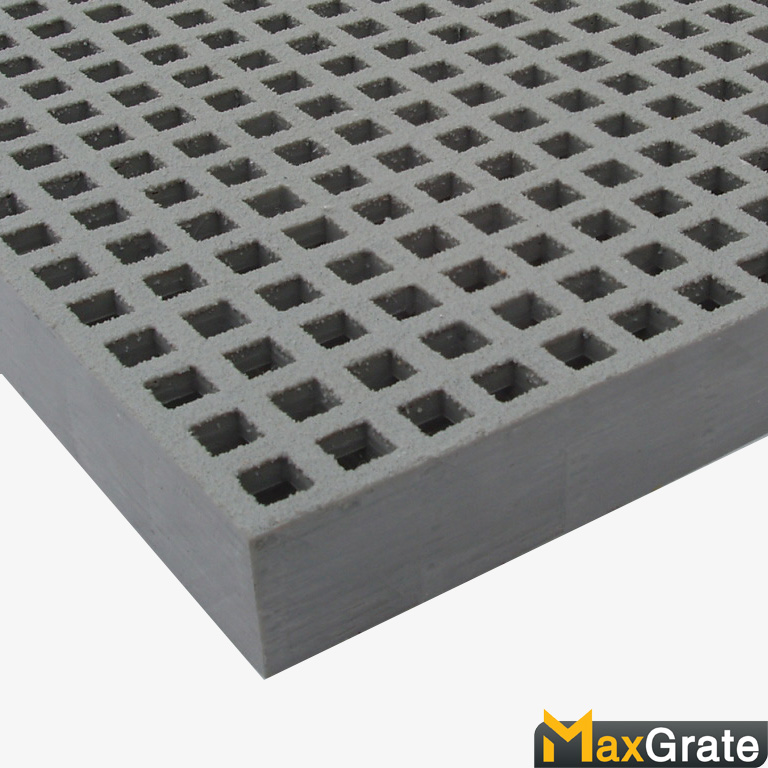

Mini mesh

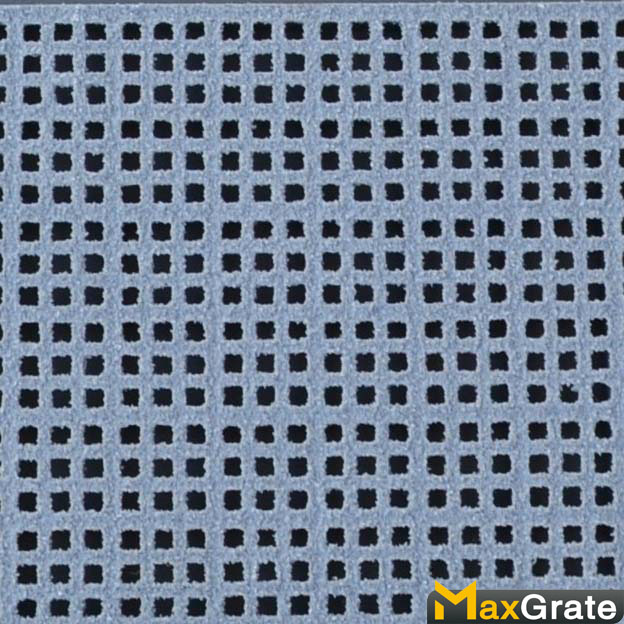

Micro mesh

Bottom side

Mini mesh FRP grating has one-fourth opening of standard 38mm square mesh gratings, could prevent objects as small as 13mm from falling through

Micro mesh GRP grating has one-ninth opening of standard 38mm square mesh gratings, could prevent objects as small as 8mm from falling through

You can easily get both mini mesh and micro mesh differrences compared to standard 38mm square mesh fiberglass gratings.

As well as other FRP molded grating, MaxGrate mini mesh grating not only have all FRP properties of other molded grating but also offering fiberglass grating common surface types:
C - Regular Concave Surface (Meniscus)

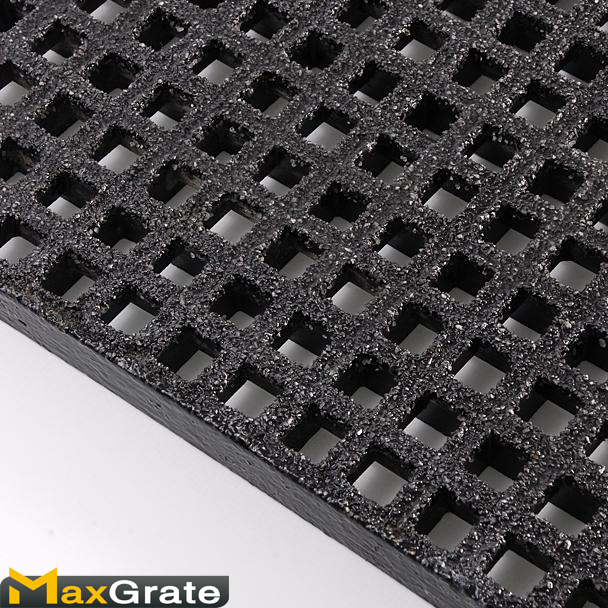

G - Secondary Silica Grit Surface
S - Polished Smooth surface
Resin system of mini FRP grating
MaxGrate offers five resin systems for mini mesh moulded grating to accommodate different requirements of corrosion resistance application, MaxGrate resin systems have a class 1 flame spread rating of 25 or less per ASTM E-84.
Resin Type Resin Base Description Corrosion
Resistence
Flame Spread Rating Usage Temp℃
O Orthophthalic Polyester Morderate Grade Corrosion
 Resistance Fire Retardant
Good Astm E-84 Class 1 25 Or Less -50 - 60
I Isophthalic Polyester Industrial Corrosion
Resistance Fire Retardant
Very Good Astm E-84 Class 1 25 Or Less -50 - 90
IF Isophthalic Polyester Food Grade Corrosion
Resistance Fire Retardant
Very Good Astm E-84 Class 1 25 Or Less -50 - 90
V Vinyl Ester Superior Corrosion
Resistance Fire Retardant
Excellent Astm E-84 Class 1 25 Or Less -50 - 110
VH Vinyl Ester Superior Corrosion Resistance High Fire Retardant Excellent Astm E-84 Class 1 10Or Less -50 - 110
Rick Color for Option
MaxGrate offers wide color selections for fiberglass grating as well as covered grating.The followings are some of the most popular color that we may have stock and keeping continuously production. We can closely match any color in the Ral Color Chart Page or provided color chips.
Mini mesh
Specifications In Imperial Units
Item No. Mesh Size
(inch)
Thickness
(inch)
Bar thickness Top/bottom
(inch)
Standard Panel Size
(inch)
Open rate
(%)
Weight
(lbs/sf)
M1T25 3/4”x3/4”/1.5”x1.5” 1” 0.25”/0.2” 4’x12’,4’x8’,3’x10’ 30 3.40
M1T30 3/4”x3/4”/1.5”x1.5” 1.2” 0.25”/0.2” 4’x12’,4’x8’,3’x10’ 30 3.90
M1T38 3/4”x3/4”/1.5”x1.5” 1.5” 0.25”/0.2” 4’x12’,4’x8’,3’x10’ 30 4.80
M3T30 1/2”x1/2”/1.5”x1.5” 1.2” 0.29”/0.18”/0.22” 4’x12’,4’x8’,3’x10’ 30 4.50
Specifications In Metric Units
Item No. Mesh Size
(mm)
Thickness
(mm)
Bar thickness Top/bottom (mm) Standard Panel Size
(mm)
Open rate
(%)
Weight
(Kg/m2)
M1T25 19x19/38x38 25 6.5/5.0 1220x3660,1220x2440,915x3050 30 16.8
M1T30 19x19/38x38 30 6.5/5.0 1220x3660,1220x2440,915x3050 30 19.0
M1T38 19x19/38x38 38 6.5/5.0 1220x3660,1220x2440,915x3050,
1000x4038,1000x3000
30 23.5
M2T30 20x20/40x40 30 7.0/5.0 1007x3007,1007x4047,1247x4047 42 18.0
M2T40 20x20/40x40 40 7.0/5.0 1007x3007,1007x4047,1247x4047 42 23.7
M3T30 12.7x12.7/38x38 30 7.5/4.5/6.0 1220x3660,1220x2440,915x3050 30 22
M4T25 13x13/40x40 25 6.5/4.5/6.0 1007x3007,1007x4047,1247x4047 30 17.8
M4T30 13x13/40x40 30 6.5/4.5/6.0 1007x3007,1007x4047,1247x4047 30 18.8
M4T38 13x13/40x40 38 6.5/4.5/6.0 1007x3007,1007x4047,1247x4047 30 23.8
Catalogue Number
For example
MS1T38P2OGGN1: Molded FRP grating, Square mesh 38x38mm(1.5''x1.5''), thickness 38mm, panel size 1220x2440mm(4'x8'), Ortho resin, Gritted surface, Color Green RAL6029.

Others*: Special mesh size, thickness maybe available upon request, any panel size within the standard size are available, other colors as per RAL Color Chart are avaiiable. please contact one of our sale managers before ordering.
