FRP Molded Grating

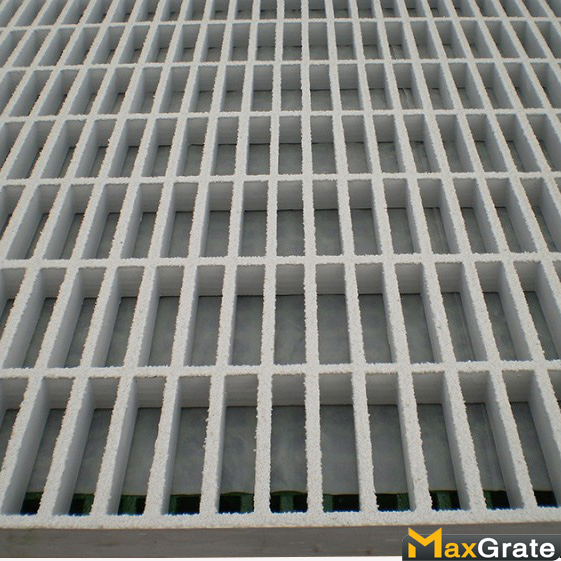

Rectangular mesh fiberglass grating

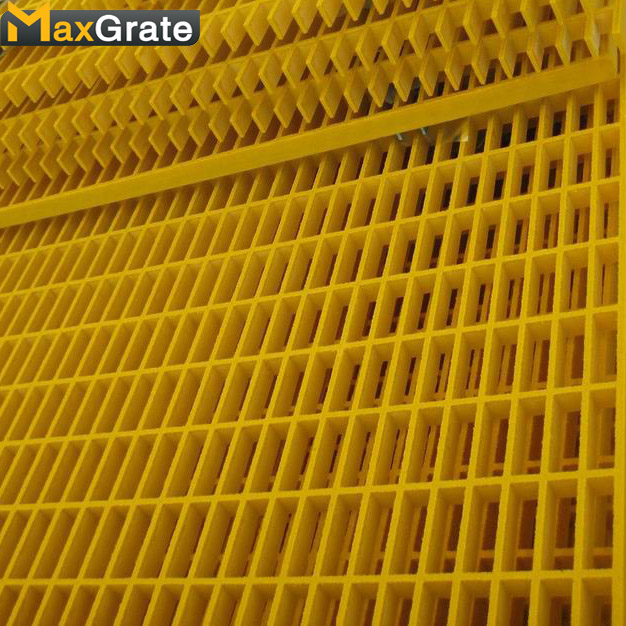

Rectangular mesh fiberglass grating

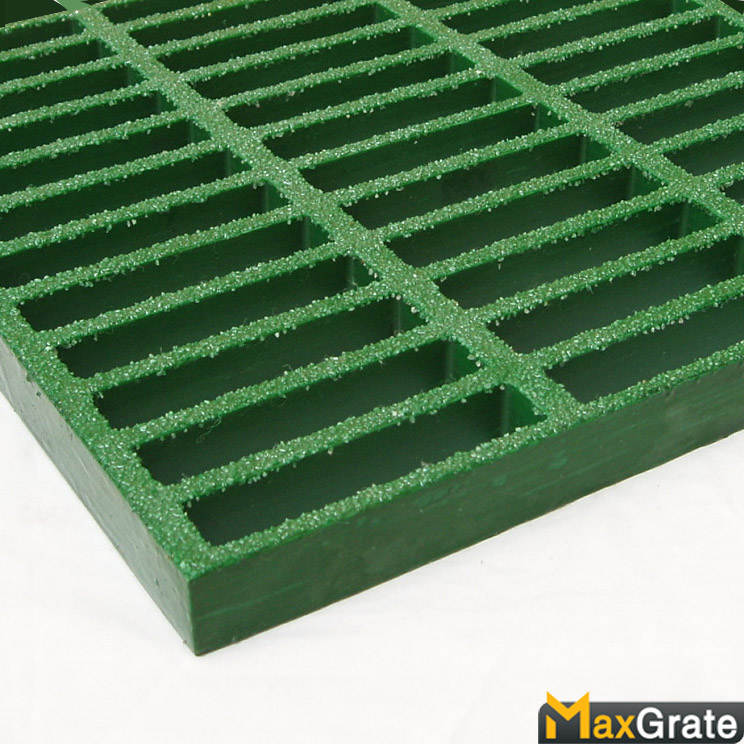

Rectangular mesh fiberglass grating
Rectangular mesh fiberglass grating
Rectangular mesh fiberglass grating

Rectangular mesh fiberglass grating

Rectangular mesh FRP grating offer a beautiful pattern mesh which look like pultruded grating but have uniform structures as other molded fiberglass grating.This one piece molded grating features high strength, bidirectional physical properties and high chemical corrosion resistance as well with its high percentage of resin.
  • Slip resistane
  • Fire retartant
  • Whether proof
  • Corrosion resistance
  • Non magnetic
  • Easy installation
  • Impact Resistant
  • Weather proof
  • Non-skid surface
  • Light weight
  • Non conductive
  • Maintenance free
Promise

Description

Specification

How to Order

Reviews

As well as other FRP molded grating, MaxGrate rectangular mesh grating not only have all FRP properties of other molded grating but also offering fiberglass grating common surface types:
C - Regular Concave Surface (Meniscus)
G - Secondary Silica Grit Surface
S - Polished Smooth surface
MaxGrate rectangular mesh molded frp gratings offer below
mesh sizes for option :
R1-25x100mm(1"x4")
R2-38x100mm(1.5"x4")
R3-25x152mm(1"x6")
R4-38x152mm(1.5"x6")
1"x6" is one of the standard size for FRP stair tread .
Resin system for FRP grating
MaxGrate offer five resin systems for rectangular mesh moulded grating to accommodate different requirements of each custom application, all MaxGrate resin systems have a class 1 flame spread rating of 25 or less per ASTM E-84.
Resin Type Resin Base Description Corrosion Resistence Flame Spread Rating Usage Temp℃
O Orthophthalic
Polyester
Morderate Grade Corrosion
Resistance Fire Retardant
Good Astm E-84 Class 1 25 Or Less -50 - 60
I Isophthalic
Polyester
Industrial Corrosion
Resistance Fire Retardant
Very Good Astm E-84 Class 1 25 Or Less -50 - 90
IF Isophthalic
Polyester
Food Grade Corrosion
Resistance Fire Retardant
Very Good Astm E-84 Class 1 25 Or Less -50 - 90
V Vinyl Ester Superior Corrosion
Resistance Fire Retardant
Excellent Astm E-84 Class 1 25 Or Less -50 - 110
VH Vinyl Ester Superior Corrosion Resistance High Fire Retardant Excellent Astm E-84 Class 1 10- Or Less -50 - 110
Rich Color for Option
MaxGrate offers wide color selections for rectangle molded grating. The followings are some of the most popular colors that we may have stock and keeping continuously production. We can closely match any color in the Ral Color Chart Page or provided color chips.
Rectangular Mesh
Specifications In Imperial Units
Item No. Mesh Size
(inch)
Thickness
(inch)
Bar thickness Top/bottom(inch) Standard Panel Size
(inch)
Open rate
(%)
Weight
(lbs/sf)
R1T25 1”x4” 1” 0.25”/0.22” 4’x12’,4’x8’,3’x10’ 67 3.80
R1T25H 1”x4”Heavy duty 1” 0.37”/0.31” 4’x12’,4’x8’,3’x10’ 52% 3.95
R1T38 1”x4” 1.5” 0.31”/0.22” 4’x12’ 67 4.60
R2T38 1.5”x4” 1.5” 0.31/0.22” 4’x12’ 65 3.35
R3T38 1”x6” 1.5” 0.35”/0.25” 4’x12’,4’x8’,3’x10’ 63 4.60
R4T38 1.5”x6” 1.5” 0.31”/0.22” 4’x12’,4’x8’,3’x10’ 67 3.25
Specifications In Metric Units
Item No. Mesh Size (mm) Thickness
(mm)
Bar thickness Top/bottom
(mm)
Standard Panel Size
(mm)
Open rate (%) Weight
(Kg/m2)
R1T25 25x100 25 7.0/5.0 1220x3660,1220x2440,915x3050 67 13.8
7.0/5.5 1007x3007,1007x4007 67 13.0
R1T25H 25x100 Heavy duty 25 7.0/5.5 1220x3660,1220x2440,915x3050 52 19.5
R1T30 25x100 30 7.0/5.5 1007x3007,1007x4007 67 15.6
R1T38 25x100 38 8.0/6.0 1220x3660 62 22.5
R2T38 38x100 38 8.0/6.0 1220x3660 65 16.4
R3T38 25x152 38 9.0/6.5 1220x3660,1220x2440,915x3050 63 22.5
R4T38 38x152 38 8.0/6.0 1220x3660,1220x2440,915x3050 67 15.9
Catalogue Number
For example
MS1T38P2OGGN1:  Molded FRP grating, Square mesh 38x38mm(1.5''x1.5''), thickness 38mm, panel size 1220x2440mm(4'x8'), Ortho resin, Gritted surface, Color Green RAL6029.

Others*: Special mesh size, thickness maybe available upon request, any panel size within the standard size are available, other colors as per RAL Color chart are avaiiable. please contact one of our sale managers before ordering.
